HOW DOES DIRECT-TO-FILM WORK?

Black T-shirt printed with - Take me to California
Monitor Screen

Create your full-color design

Printers

Print your design on film

Powder Shake

Apply powder & shake off excess

Cure Design

Cure design

Press Design

Press your design onto a substrate

Pink Tote Bag
Towel
Rug
Baby vibes

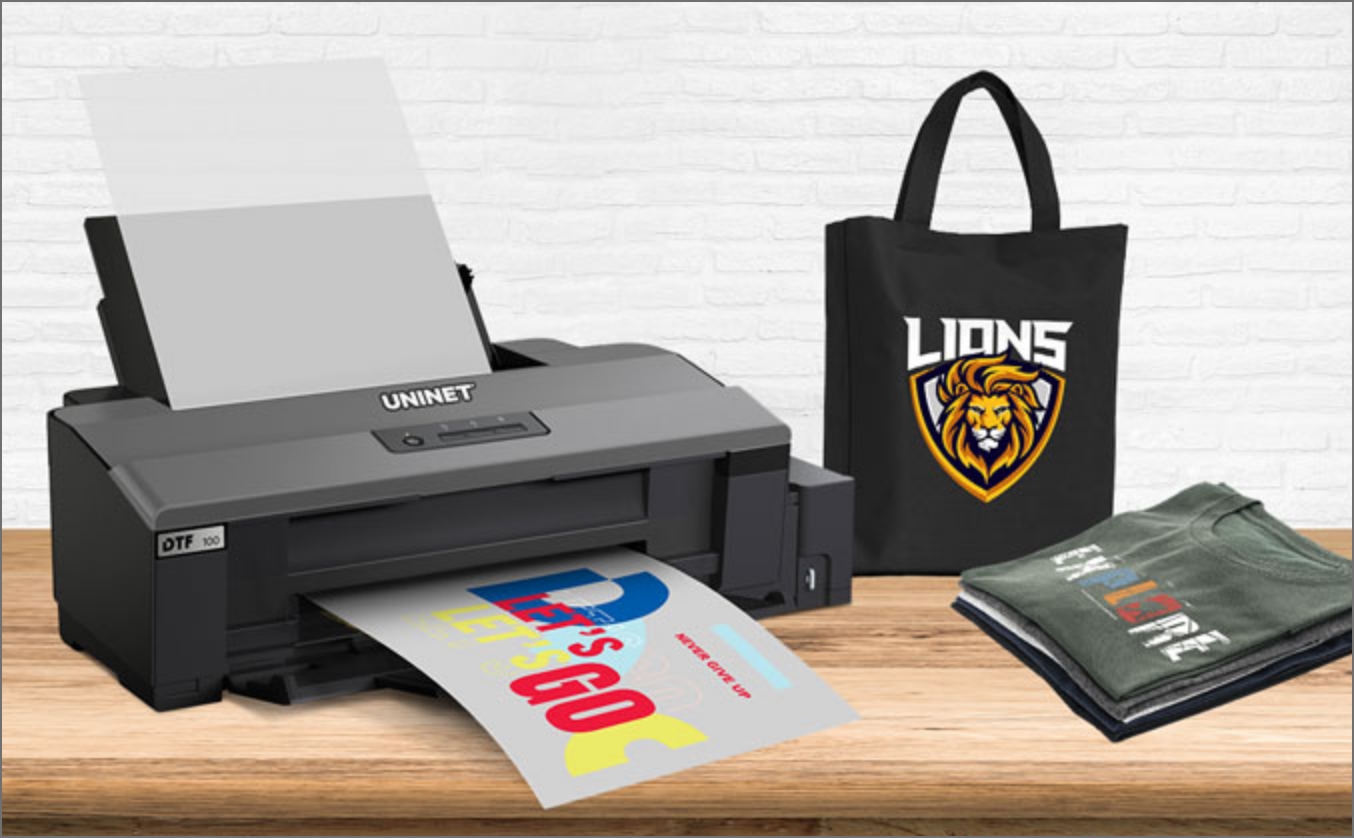

PRINTER COMPARISON

PRINTER MODEL
DTF100
DTF100
DTF1000
DTF1000
BY-20
BY-20
ITEM # ICPDTF100 ICPDTF1000 BY-20
DIMENSIONS 27.8" x 12.7" x 8.5" 27.5" x 23.6" x 15.7" 42.1” x 24.3” x 24.5”
PRINT OR CUT SPEED Print: 8 to 10 minutes per A3 Sheet Print: 6 to 8 minutes A3 Sheet Cut: 0.39” to 5.9” per second
MAX PRINT WIDTH Up to 13" transfer film cut sheets 13" transfer film roll 18.89”

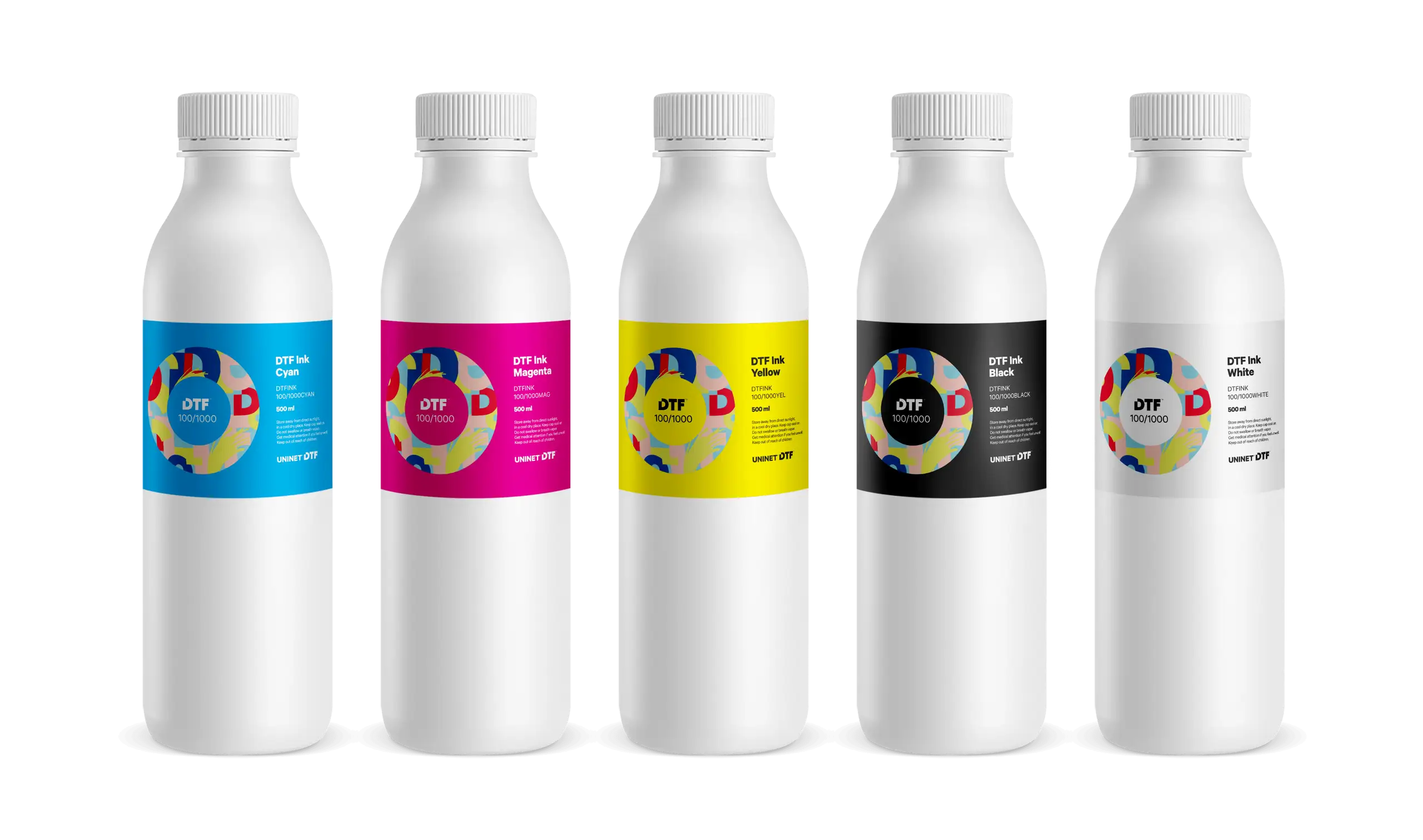

INKS Five-color inks (CMYK + White) Five-color inks (CMYK + White) Five-color inks (CMYK + White)
PRINT METHOD A high-definition and professional inkjet Printhead A high-definition and professional inkjet Printhead Piezo ink-jet method
RESOLUTION Up to 1440 dpi 5760 x 1440 dpi Up to 1440 dpi
PAPER CAPACITY PET film sheets: up to 13in/33cm/330mm wide x 48in/122cm/1219mm long 100-meter PET film roll: 13in/33cm/330mm wide 39in/99cm/990mm long Max. 39.3 mil (1.0 mm) with liner, for printing Max 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
WEIGHT 28 lbs 48 lbs 137 lbs
ELECTRICAL AC 110/60Hz AC 110/60Hz 185W
OPERATING SYSTEM Windows® 7 & Windows® 10 Windows® 10 & Windows® 11 Windows 10/11 (64-bit edition)
CONNECTIVITY USB connection USB connection Ethernet (100BASE-TX/1000BASE-T, automatic switching)Cable not provided
ADD-ONS
  • UNINET DTF Powder Heat Station (to cure the powder to the printed sheets)
  • Windows 10 or higher Computer (PC) with an available USB port
  • Heat press for finishing (curing) the final print to your garment - We recommend a 16x20 heat press
  • Humidifier (to keep the humidity above 50% - 65% in the print room)
  • Air purifier / Fume extractor for curing process
  • UNINET DTF Powder Heat Station (to cure the powder to the printed sheets)
  • Windows 10 or higher Computer (PC) with an available USB port
  • Heat press for finishing (curing) the final print to your garment - We recommend a 16x20 heat press
  • Humidifier (to keep the humidity above 50% - 65% in the print room)
  • Air purifier / Fume extractor for curing process Uninet DTF Shaker
  • Uninet DTF Shaker
  • UNINET DTF Powder Heat Station (to cure the powder to the printed sheets)
  • Windows 10 or higher Computer (PC) with an available USB port
  • Heat press for finishing (curing) the final print to your garment - We recommend a 16x20 heat press
  • Humidifier (to keep the humidity above 50% - 65% in the print room)
  • Air purifier / Fume extractor for curing process
  • Uninet DTF Shaker
WARRANTY 1 year 1 year 1 year

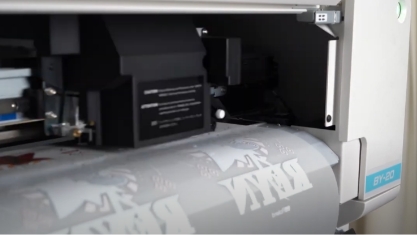

VIDEOS

Industry experts are here to show you how to use direct-to-film printers!

DIRECT-TO-FILM RESOURCES

Our team of experienced professionals are ready to help you every step of the way. From installation to production, we make sure you get the most out of your direct-to-film experience. Our friendly service team provides free, expert installation guidance and helps make suggestions as to the right materials and supplies to give you the best results possible!

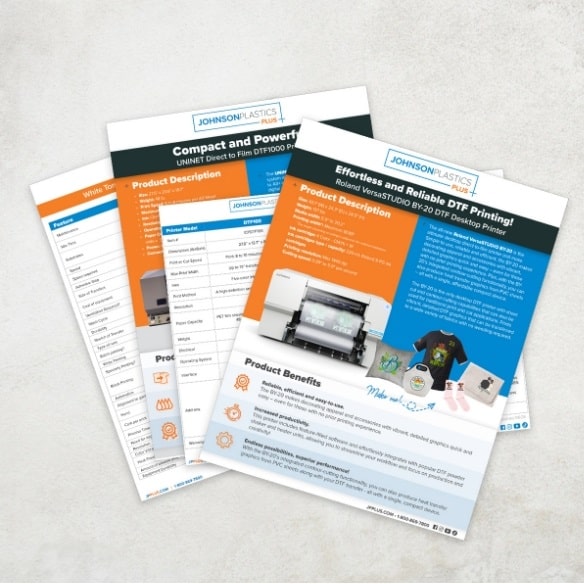

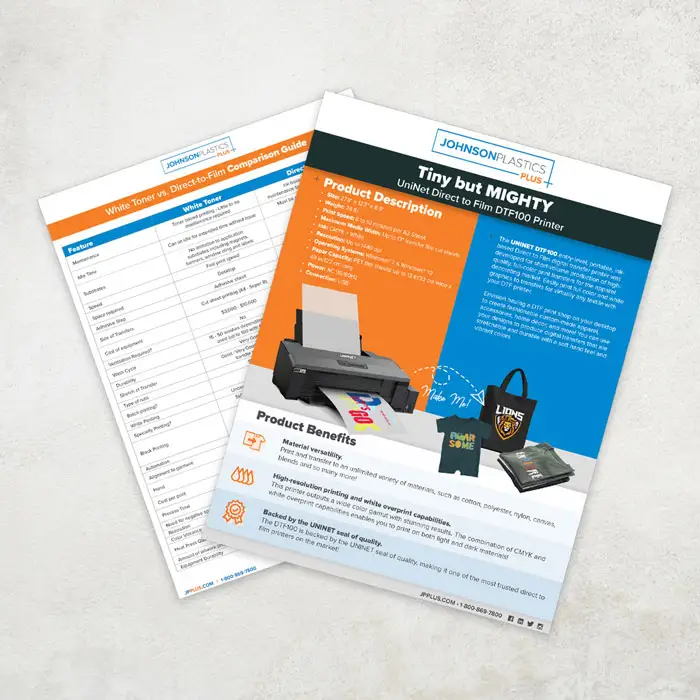

Direct-to-Film
Fact Sheets

Download

Direct-to-Film
Comparison Guides

Download

BUILD YOUR DREAM BUSINESS!

Talk to one of our trained experts to make sure you get the right equipment for your business! From printers to heat presses and everything in between, we'll take the mystery and uncertainty out of the buying process and set you up for success!

CONTACT US

Let our team of experts be your trusted source for Direct-to-Film equipment!

When you purchase your equipment through JPPlus, you'll not only get FREE lifetime tech support but also FREE remote installation.

Our friendly team of equipment experts will help get you up and running and help troubleshoot any issues that may come up.

CONTACT SUPPORT TEAM

REQUEST PRINTER QUOTE

Get your estimates in three easy steps!

LEARN MORE

EQUIPMENT FINANCING

Convenient and easy financing available!

LEARN MORE
