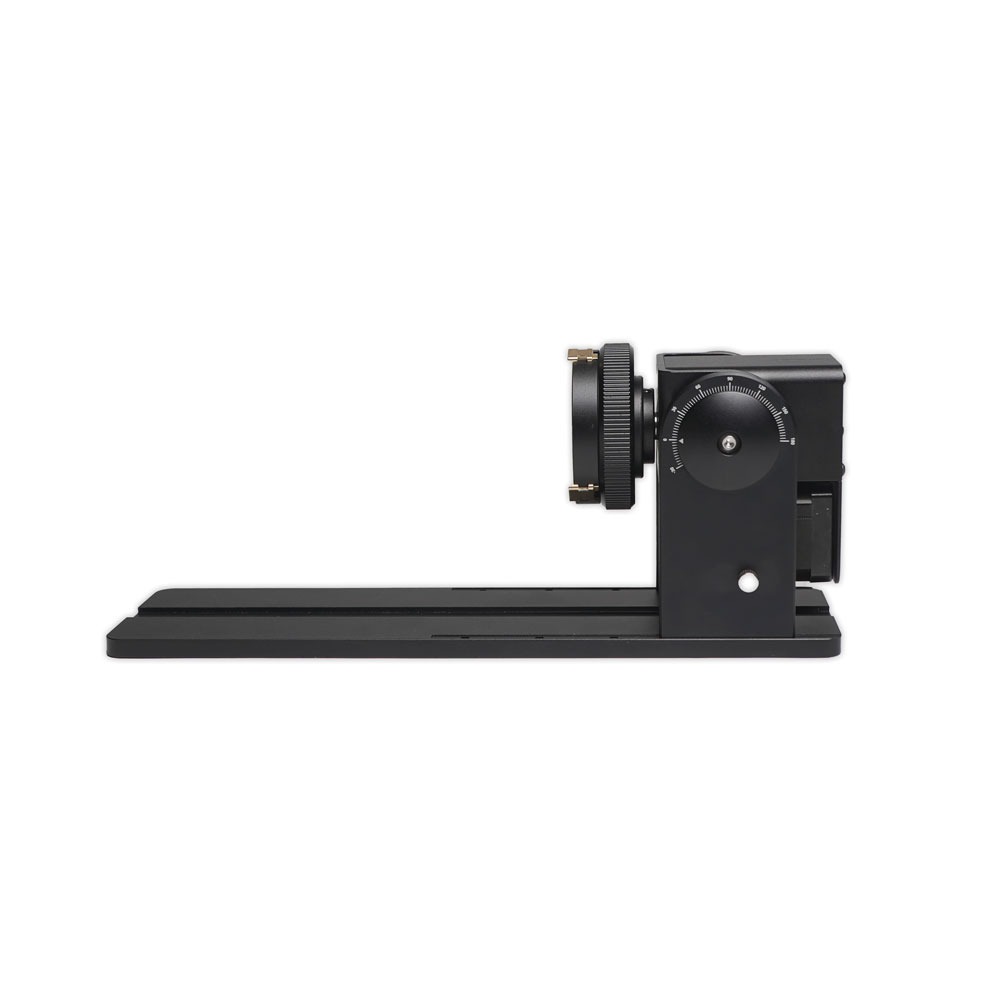

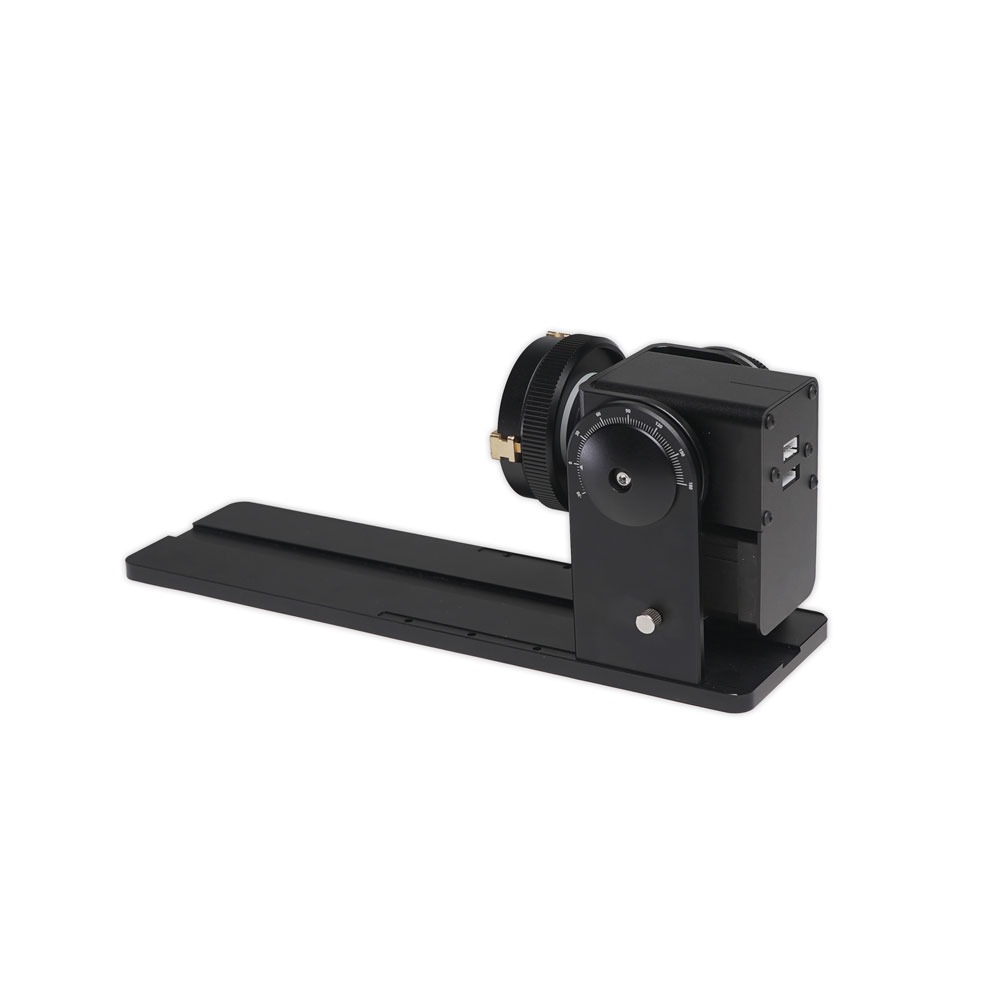

Flux Beambox II Chuck Rotary

Take your engraving to the next level with the FLUX Beambox II Chuck Rotary Attachment! Designed to work seamlessly with Beambox II lasers, this innovative add-on allows you to engrave cylindrical, spherical, and ring-shaped objects with precision and ease.

Unlike traditional rotary attachments, this chuck rotary uses rollers to provide superior stability, ensuring your designs come out flawlessly every time.

With the FLUX Chuck Rotary, the possibilities are endless! You can now engrave a variety of items, from small baseball bats and rings to spherical objects, opening up exciting new product opportunities for your business. Looking to engrave larger drinkware like 40 oz. tumblers? The FLUX Chuck Rotary Riser Kit gives you the extra clearance you need to tackle even bigger projects!

This attachment eliminates the limitations of engraving only flat-surface drinkware, enabling you to expand your product lineup and take your business to the next level!

Specifications

• Dimensions: 11.81"x4.06"x4.92"
• Object Diameter Range
  • Ring: .43"-5.71"
  • Cylindrical: .04"-5.71"
  • Sphere: .98"-5.12"
• Maximum Material Length: 19.67"
• Clamping Weight: 3.31 lbs
• Tilt Angle: Neg 30° to 180°
• In order to use the chuck rotary, you MUST have the extension pocket

Chuck Rotary ONLY Package Contents:

• Beambox II Chuck Rotary
• Tail Support, Connection Cable
• Mini Leveler
• Hexagonal Jaws
• Stepped Jaws
• L-Shaped Jaws
• Hex Screws
• Hex Screwdriver
• Ruler
• Caliper

Recommended Products

• Extension pocket (required to use Chuck Rotary)
• Riser Kit (required to use for 40oz tumblers with handle)
• FLUX Laser Cutter Fume Extractor Beam Air Pro

How do I attach my chuck rotary?

To set up your chuck rotary, start by removing the honeycomb laser bed and placing the chuck rotary at the base of your laser. If you're engraving a larger item, like a 40oz tumbler, ensure the extension pocket is in place to elevate the laser for proper clearance. Once positioned, connect the cord to the back left of your laser along the interior wall. That’s it—you’re ready to go!

What can I engrave with a chuck rotary as opposed to a roller?

A chuck rotary unlocks endless engraving possibilities! Unlike traditional rotary tools, a chuck allows you to engrave not just cylindrical objects but also spherical and ring-shaped items with precision. If you're working with longer items, like 40oz tumblers, the Chuck Rotary Riser Kit provides the necessary support to keep your engraving smooth and stable.

What is the FLUX Beambox ll Extension Pocket?

The extension pocket is an additional component for the FLUX Beambox II that provides extra depth for engraving larger items, such as 40oz. tumblers. It fits into a pre-cut flap at the bottom of the Beambox II, which you can easily replace by removing the screws and swapping in the pocket. This pocket is needed if you are planning to engrave taller items such as our 40oz. Holographic Simply Engraving Tumblers.

To use the pocket, you'll need to elevate your Beambox II using the metal risers. These risers raise the entire machine, adding the necessary height to accommodate the pocket and allow you to engrave larger items.

What are some things I could engrave on with the Beambox ll Chuck Rotary?

Your creative possibilities are endless! Here are just a few personalized products you can create using the chuck rotary!

• 40oz. tumblers (even with the handle on)!
• Wooden baseball bats for memorabilia or gifts
• Engraved balls for sports keepsakes
• Custom rings with initials, dates, or special messages
